I founded Colorado's first Formula SAE Electric Vehicle program and designed a 324V, 8.64kWh battery system that earned a Tesla sponsorship. Across four competition vehicles, I've designed custom PCBs (BMS, safety interlocks, telemetry), written CAN test frameworks for fault validation, and architected full vehicle harnesses integrating 30+ sensors.
I scaled RAM Racing from 30 to 60+ members, raised $400K, and shipped four competition vehicles, building a team culture around precision, ownership, and real engineering accountability.
4Competition vehicles engineered
60+Members led at RAM Racing
$400KFunding raised
Image of meat MIT with Alexander Amini
At MIT with Alexander Amini after being selected for the Deep Learning class.
Image of the carsRAM Racing fleet

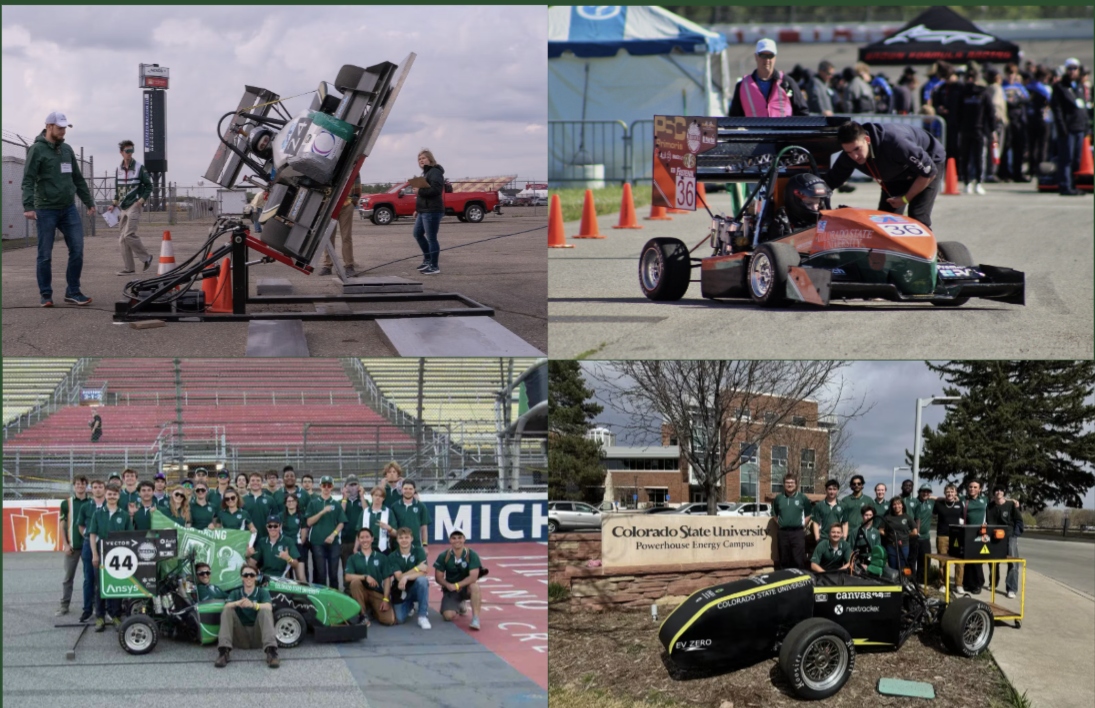

Formula SAE vehicles built at RAM Racing, four completed, six total by graduation.
Projects

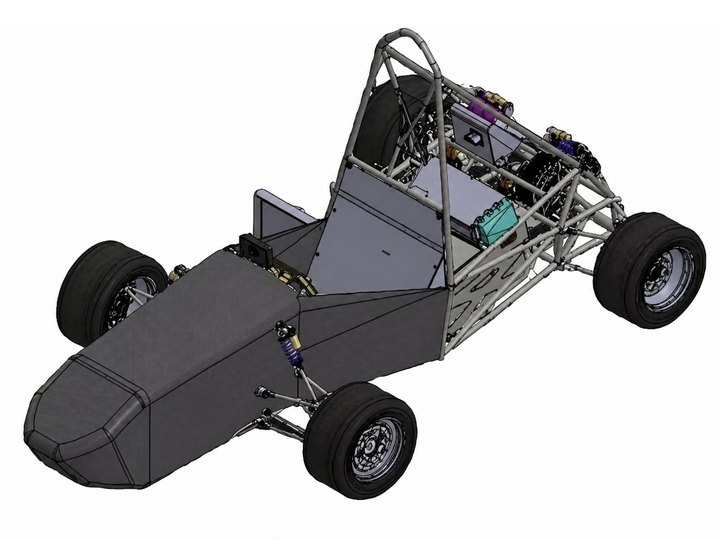

01Venus EVColorado's flagship FSAE Electric car, full HV accumulator & safety stackHV Accumulator324V BatteryBMSKiCadSystem IntegrationElectrical System OfficerFSAE 2026+
As Electrical System Officer for the 2026 car, I managed the LV and HV subteams while personally focusing on energy experimentation to deliver the program's first competition-bound battery pack, balancing the technical demands against the challenge of building it as cheaply as possible so the other subteams had the budget to build the rest of the car.
Battery Pack Architecture & Cell Selection
90s5p · 8.64kWh · 324V nominal, designed cell-level from scratch
Background
First EV program with no existing battery architecture, required full cell-level design rather than purchasing pre-made modules.
Budget constraints made in-house cell assembly necessary, saving ~$7,000 but requiring the electrical team to own all pack design decisions.
Needed to size for FSAE endurance (22km) with enough margin to account for simulation uncertainty.
Technical Approach
Evaluated five cell chemistries (P30B, P50B, P28A, P60B, M35A); selected Molicel P50B for its energy density (5000mAh, 18Wh) at acceptable weight (71g) and internal resistance (17mΩ).
Simulated full endurance in OpenLap (2023 Michigan layout), 350Wh/lap, requiring 7.7kWh minimum; applied a 12% margin from a prior ICE vehicle where actual exceeded simulation by 7%.
Configured as 90s5p (8.64kWh, 324V nominal) in 16 segments of three modules each, enabling symmetric segment removal for future weight optimization.
Results
Delivered complete pack architecture meeting FSAE energy requirements with 12% validated margin.
Cell thermal modeling confirmed sub-40°C operation through full endurance, eliminating active cooling complexity.
Modular design enabled future weight reduction without redesign, ordered 20% extra cells for screening and parallel-group matching.
Battery Pack High-Voltage Integration
Precharge, discharge & isolation monitoring, full KiCad HV architecture
Background
HV system must precharge inverter bus capacitance before contactor closure, discharge stored energy on shutdown, and continuously monitor isolation failure, any fault is safety-critical.
FSAE rules require precharge to 95% bus voltage before main contactor closure, discharge to under 60V within a set time, and IMD response within defined latency for isolation loss.
Technical Approach
Sized 1/0 AWG EXRAD-HVX1V8X cabling from thermal modeling (sub-40°C continuous, margin to 90°C at 500A) and selected Littelfuse protection from datasheet I²t curves.
Designed precharge (620Ω, 0.88mF bus, 95% in under 10s) and discharge (2.2kΩ, NC relay auto bleed-down) circuits within resistor power ratings.
Created a full KiCad schematic defining AIR control, IMD integration, TSAL logic, energy metering, and connector interfaces (Amphenol, LEMO, Hirose).
Results
Delivered complete HV architecture with selections justified by operating conditions and datasheet specs.
Produced operational documentation covering startup, shutdown, and fault injection sequences.
System prepared for bench validation of precharge timing and IMD fault response before integration.
Fuse Links
328A short-circuit characterization, benchtop test rig at 200Hz+
Background
Individual cell fusing must interrupt 328A theoretical short-circuit current to prevent thermal runaway, FSAE requires test data at four current levels (Level 4: 0.05 to 0.15s at highest current).
Nickel-plated fuse links with reduced cross-section need characterization to validate melt time against the thermal model (t_melt = M·ΔH / (P_gen - P_loss)).
Technical Approach
Built a benchtop rig using a stick welder (500A short-circuit) with a current sensor feeding Simulink for real-time acquisition and automatic blow-time detection.
Defined a test matrix across four current levels; a rapid fuse-swap fixture enables iterating geometry to correlate measured blow times with analytical calculations.
Results
Established a repeatable characterization process with >200Hz sample rate capturing blow transients.
Test data package prepared for SAE technical inspection, proving the fuse clears fault current within required windows.
The nickel fusible link doubles as each cell's fuse, so tab-to-busbar weld quality directly sets a safety-critical parameter; the 90s5p pack required ~450 cells and ~600 spot welds executed in-house with no vendor-qualified process to inherit.
Needed a measurable, repeatable accept/reject criterion for a hand-operated spot welder before scaling the process across the full pack.
Technical Approach
Ran a design of experiments across pre-pulse (BI), weld time (WT), weld current (WI), electrode pressure, and pulse count; graded pass/fail by destructive peel test against a failure-mode criterion rather than a force threshold, a passing joint had to tear parent tab material rather than release at the weld interface.
Low weld time produced cold, low-visual welds and excessive current (WI 15) deformed and holed the cell can, both rejected as under- and over-weld failure modes; the accepted setpoint (WI 10 / WT 4, two pulses) consistently pulled tab material off the cell.
Followed with non-destructive resistance screening (voltage-drop method) across 8 busbar assemblies × 5 fusible links each, then revised link geometry to reduce nickel path resistance.
Validated the process in service through the BMS, logging 6 instrumented cells through a full discharge cycle to check for an outlier joint.
Results
Fusible-link resistance held 0.29–0.63mΩ across all 40 screened links, with no outliers flagged for rework.
Under discharge, cell voltage spread peaked at 28mV (CV 0.32%) across the instrumented group, confirming pack-level uniformity.
At the pack's ~20A/cell discharge current, that resistance spread alone predicts only ~6.6mV of cell-to-cell variation, well under the 28mV observed, weld/link resistance is not the dominant driver of pack imbalance.
Custom Charging Architecture
6.6kW off-vehicle charger interface with full interlock integration
Background
FSAE rules require accumulator removal for charging; the system must safely interface an external 6.6kW charger with HV isolation, interlocks, and voltage monitoring via banana jacks.
Technical Approach
Created a KiCad schematic defining the charger-to-pack interface: EV200A1ANA contactor, Amphenol UPCR012AL51 and TE AMP+HVP800 (50mm²) quick-disconnects, LV25-P voltage transducer with resistor divider for isolated HV sense, and HVIL continuity through a LEMO connector to shutdown.
Results
Delivered complete charging documentation with connector selections, fuse ratings (30A charger input, 5A energy meter), and wire gauges (8 AWG feed, 84mm² bus bars) enabling off-vehicle charging with full interlock integration.
Custom Battery Management System (in validation)
Distributed 16-slave architecture, 90-wire harness reduced to a 6-wire digital backbone
Background
Orion thermistor expansion required a 90-wire harness inside a 378V accumulator, creating assembly risk and service complexity.
Wiring bulk and connector density were the highest-probability failure modes during integration and maintenance.
Technical Approach
Designed a distributed architecture with 16 slave boards, 1 master, 16-bit ADCs over SPI, isolated GLV-to-tractive domains, and CAN communication to the BMS.
Replaced parallel analog wiring with a 6-wire digital backbone, local temperature acquisition with centralized data aggregation.
Results
Currently in the process of validation.

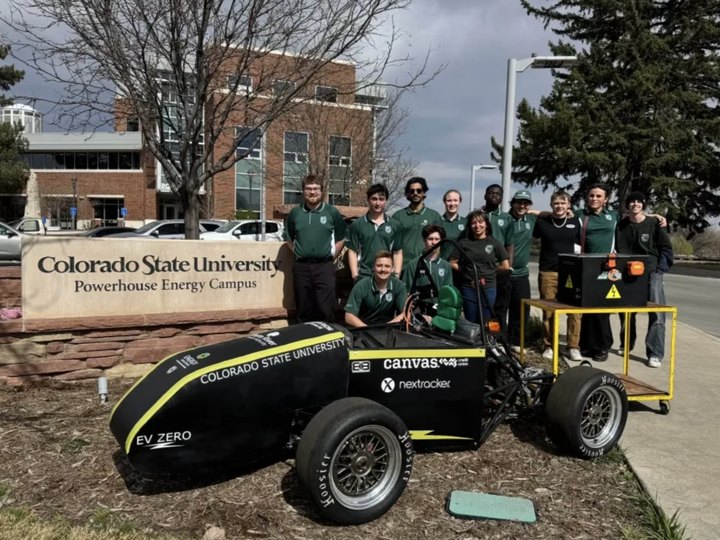

02Rubicon EVFirst CSU EV car, full vehicle electrical architecture & safety systemsSystem ArchitectureTractive SystemBrake PlausibilityPowertrainVehicle IntegrationChief EngineerFSAE 2025 EV+
As Chief Engineer of CSU's first electric car, I owned the full vehicle architecture and supported the powertrain and suspension teams, managing timelines across six mechanical and electrical subteams to deliver the first FSAE EV prototype in the Rocky Mountain region.
Formula SAE Electric Vehicle System Architecture
Full HV, LV & safety architecture, bench-testable before integration
Context
Integrated HV powertrain and LV controls into one vehicle-level design meeting FSAE shutdown and safety requirements.
Coordinated interfaces across inverter PM100DX, Orion VMS2, accumulator, and vehicle controls with mixed signal types.
Needed a bench-testable architecture to validate interlocks and communication before accumulator integration.
Technical Approach
Engineered full HV, LV, and safety system architecture and interfaces.
Defined shutdown, interlock, and communication paths (CAN, analog, digital).
Created complete KiCad schematics from component datasheets.
Results
Delivered complete electrical schematics used by all subteams.
Enabled bench testing of HV, LV, and safety interactions before vehicle integration.
Reduced integration risk during first high-voltage power-up.
FSAE rules require visible HV indication: solid red above 60V DC (live), blinking green below 60V (safe), incorrect indication is immediate disqualification.
Approach
Split the PCB into galvanically isolated HV and LV sections with a 0.3mm creepage barrier, isolated DC-DC converter, and optocoupler relay; HV side uses a resistor divider for comparator threshold detection, LV side drives a 555 timer for the green blink and red enable logic.
Results
Delivered KiCad schematic and PCB layout with clear HV/LV boundary marking, comparator-based 60V detection, and 555-based blink timing meeting FSAE visibility and frequency requirements.
Brake System Plausibility Design
Hardware brake/throttle conflict detection, latched shutdown, all fault modes tested
Background
FSAE rules require hardware-based detection of simultaneous brake and throttle, if accelerator exceeds threshold while braking, the system must open shutdown and latch the fault until manual reset; software-only solutions are prohibited.
Technical Approach
Partitioned the circuit into independent brake and accelerator monitoring sections, each with LM393 comparators checking voltage bounds and signal-loss via pull-up resistors.
Combined fault conditions through logic gates (74AHC1G02) feeding a latched relay driver (TLP241A); included test points (TP1 to TP9) for calibration and fault injection.
Results
Completed schematic, PCB layout, and 3D model in KiCad; bench-tested all fault modes confirming correct latch behavior and that shutdown opens within timing requirements.
Battery Pack Structure
First CSU EV accumulator, 180V, 4.1kWh pack, 50 pre-made modules
Background
First EV accumulator for CSU required integrating 50 pre-made 8p modules (CIE Solutions Lithium Block, Molicel P28A) into a structural container meeting FSAE flame-retardant, isolation, and serviceability requirements, no prior team knowledge existed.
Technical Approach
Collaborated with a mechanical engineer to define the container: 1018 cold-rolled steel welded enclosure, Garolite G10 interior for HV isolation, laser-cut acrylic module cases, and 9200FR flame-retardant epoxy for bonding.
Results
Delivered a functional 180V, 4.1kWh pack integrated with Orion BMS 2 and safety electronics; directly informed next-gen 90s5p pack design decisions.
PM100 bench validation, CAN fault-injection framework, thermal derating
Background
Before integration, the motor controller (PM100) and motor must be validated on bench to verify startup sequencing, fault responses, thermal behavior, and CAN communication, an untested HV powertrain in-vehicle risks damage to drivetrain and safety systems.
Technical Approach
Built a benchtop test stand with isolated mounting, an E-stop killing both LV and HV, a precharge circuit with manual contactor sequencing, and an independent cooling loop; developed a systematic startup procedure (LV → CAN active → precharge → main contactor → zero-throttle verify → incremental torque).
Created a CAN test framework to inject faults (CAN dropout, throttle loss, simulated overtemp, undervoltage) and verify controller behavior; logged DC bus voltage, temps, torque command vs. actual, and coolant delta-T.
Results
Validated a repeatable startup sequence, confirmed all fault-injection cases trigger expected shutdown, and established thermal derating thresholds; system ready for vehicle integration with a known operating envelope.

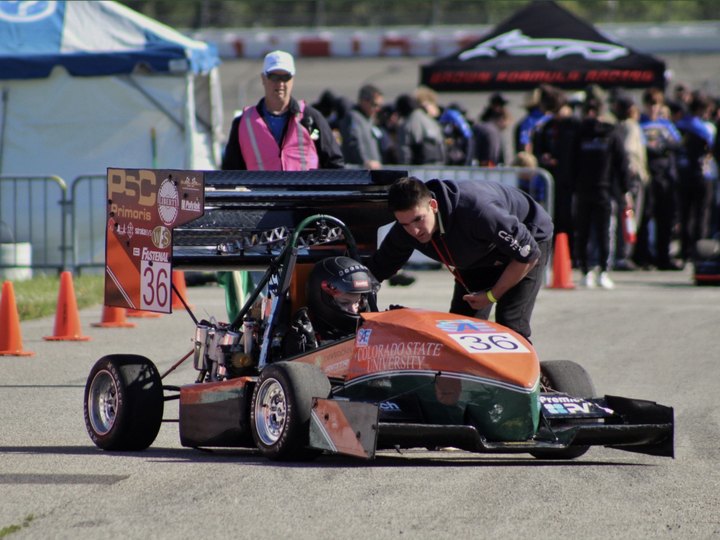

On the combustion car, our two-person electrical team delivered the full vehicle harness and a wireless telemetry unit, the foundation that later grew into sensor fusion and autonomous work.
Vehicle Wiring Integration
Haltech Nexus R5 + 30 sensors, full harness mapped in RapidHarness
Background
FSAE combustion vehicle requires integration of an ECU (Haltech Nexus R5), transmission control unit, custom Raspberry Pi display, and 30+ sensors into one harness, wiring errors cause no-start, sensor faults, or fire risk.
Technical Approach
Mapped complete electrical architecture in RapidHarness: wire routing by zone, harness segment lengths, connector pinouts (Deutsch, DTM), and color-coded circuits; documented every ECU input.
Defined a CAN bus architecture connecting ECU, TCU (servo clutch, solenoid shift), and Raspberry Pi display; mapped CAN message IDs.
Integrated vehicle dynamics sensors (linear pots, wheel speed, throttle, brake pressure) with headroom for future strain gauges and steering torque sensors.
Results
Delivered complete wiring documentation enabling repeatable harness builds; established the CAN protocol map used by the telemetry system; harness supports trackside serviceability with labeled service connectors.
Teensy + XBee wireless telemetry, ECU + IMU broadcast at ~300m range
Background
Real-time vehicle data was needed at pit for driver coaching and fault diagnosis; a wired connection was impractical, requiring a wireless system with ~300m range and a meaningful update rate.
Technical Approach
Selected Teensy for CAN support and speed to parse Haltech ECU broadcasts at 500 kbps; designed power regulation stepping 12V to 3.3V/5V rails with filtering for high-EMI noise immunity.
Integrated a BMI270 6-axis IMU for yaw rate and acceleration; implemented an XBee 2.4GHz radio (~250 kbps, ~300m range); architected for future sensor fusion and autonomous development.
Results
Delivered a functional telemetry PCB (EasyEDA schematic, fabricated board) broadcasting ECU and IMU data wirelessly; documented range/bandwidth tradeoffs vs. LoRa and cellular.
A few standout projects beyond my lead Formula SAE roles, from a competition-winning embedded clock and heavy-vehicle cybersecurity to the early CSU race cars where I cut my teeth on harnesses and vehicle instrumentation.
Sophomore Competition Winner
Mechanical seven-segment clock, ESP32, WiFi UI, servo control
Background
The competition required a functional electromechanical product from concept to prototype; the team chose a mechanical seven-segment clock combining PCB design, embedded firmware, servo control, and wireless connectivity.
Technical Approach
Supported PCB implementation: ESP32-WROOM selection (integrated WiFi, GPIO for servos, low cost), USB-C power/programming, and overcurrent protection sizing for servo stall.
Developed a web-based control interface hosted on the ESP32 for setting time and alarm, with servo PWM control to flip mechanical segments.
Results
Won the sophomore engineering competition; contributed across the full product cycle from component selection to working prototype.
Selected as one of ~50 participants nationwide for week-long hands-on cybersecurity training on commercial heavy-duty trucks; mentored by engineers from Bosch, PACCAR, Daimler, and NMFTA.
Technical Approach
Captured CAN traffic with Wireshark to map arbitration IDs to source ECUs across the J1939 protocol.
Developed brute-force scripts targeting the UDS Security Access seed/key challenge to probe the authentication mechanism.
Scripted replay and spoofing attacks with crafted CAN frames; tested which sequences triggered state changes vs. plausibility-check rejections.
Results
Specific findings under NDA; demonstrated automotive network analysis, diagnostic protocol enumeration, and scripted attack methodology on production heavy vehicles.
Endeavour IC
CSU's first combustion car, wiring harness, electronics placement & MoTeC first start
Background
Endeavour was the first internal combustion car at Colorado State University, with no inherited electrical design to build from.
Technical Approach
Built the vehicle wiring harness, laid out electronics placement on the chassis, and tested every circuit before commissioning the engine on a MoTeC ECU.
Results
Successfully started and ran the car, establishing the electrical foundation every later CSU Formula SAE vehicle was built on.
Dauntless IC
Summer strain-gauge campaign, turning Intrepid track data into suspension & powertrain design loads
Background
The suspension and powertrain teams needed measured load data, not just assumptions, to design Dauntless, so over the summer I instrumented the Intrepid IC car to capture how it was actually loaded on track.
Technical Approach
Bonded strain gauges to suspension members and driveline components in Wheatstone-bridge configurations, calibrated each channel to engineering units, and logged the bridge outputs synchronized with vehicle CAN data so strain could be tied to cornering, braking, and acceleration events.
Results
Converted real track strain into peak and fatigue load cases that fed the Dauntless suspension geometry and informed predicted powertrain loads, replacing guesswork with measured design inputs.
An incremental perception and control pipeline for autonomous navigation in the Formula Student Driverless Simulator (FSDS). A reactive LiDAR-only baseline isolates cone positions at 20Hz with O(n) sequential clustering and a binary density heuristic for steering, then a forward-facing camera processed by a YOLOv5 detector with FSOCO weights is fused with LiDAR depth. Pinhole ground-plane projection and nearest-neighbor matching align the two sensors to a 0.06m average match distance with near-zero systematic bias. A three-tier hybrid color verification scheme (stripe brightness, BGR channel dominance, HSV hue fallback) reaches roughly 98% accuracy at close range, and a color-aware proportional controller tracks the geometric centerline between the blue and yellow boundaries, eliminating the straight-line oscillation of the baseline while keeping a graceful fallback to the density heuristic under camera failure.

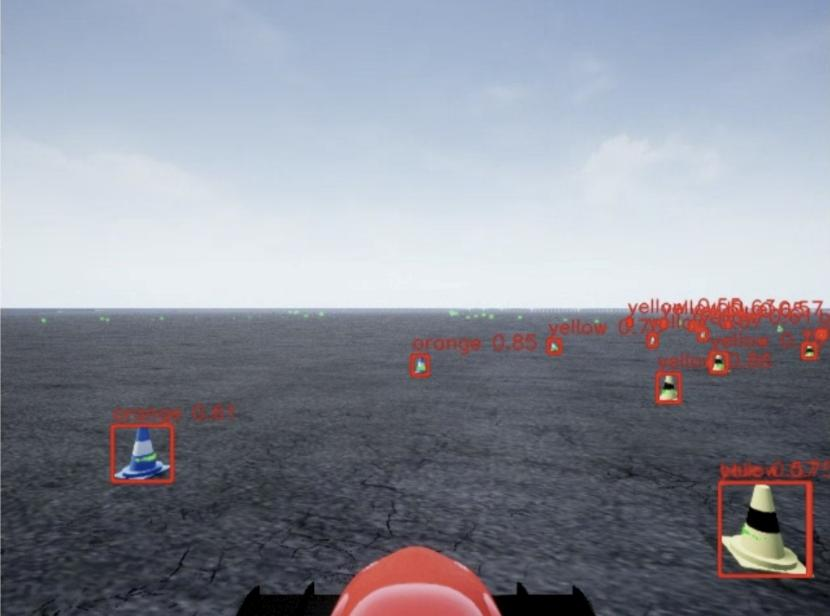

A two-phase system that detects and suppresses YOLO color misclassifications before they reach the path planner. Phase 1 builds a ground-truth dataset: a ROS2 bridge and four-stage spatial matching pipeline label 129,025 cone detections from the Formula Student Driverless Simulator, exposing a 2.52% baseline false-positive rate with orange cones failing at 24.4% (9.7x the mean). Phase 2 trains a two-model XGBoost Safety Gate, framed as supervised anomaly detection, on 17 features including five engineered context features (neighbor agreement, lateral outlier, relative size, corner flag, and a corner-by-prior interaction). On the held-out test set the system reaches F1 = 0.906, PR-AUC = 0.976, and ROC-AUC = 0.999, cutting incorrect color labels reaching the steering controller from 2.73% to roughly 0.24%, a 91% reduction in the failure mode that causes wrong lane assignment, at under 0.3ms per frame on a Raspberry Pi 4.

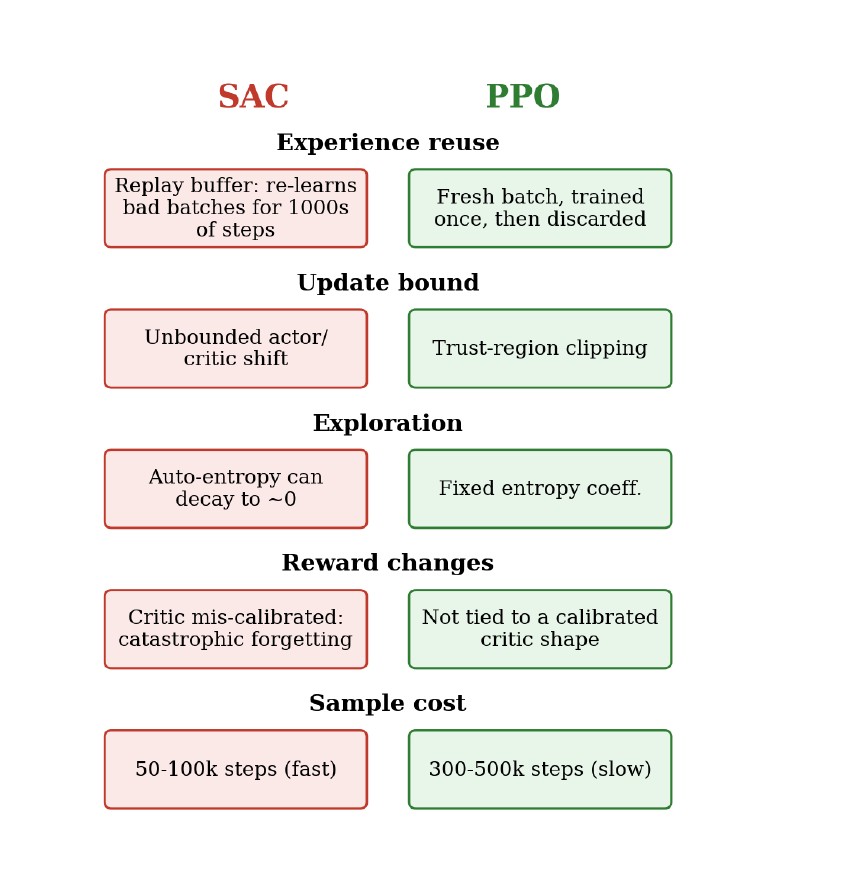

A study of replacing a hand-coded reactive steering controller with a learned policy in the Formula Student Driverless Simulator. The work delivers a reproducible RL environment with a 41-dimensional cone observation, a single steering action, and a three-term reward, with the policy trained against ground-truth cones and warm-started by behavior cloning to isolate control from perception. Soft Actor-Critic was evaluated across six configurations and every run ended in collapse, traced to three structural properties of the algorithm rather than tuning: replay-buffer poisoning, automatic-entropy collapse, and catastrophic forgetting after reward changes. Proximal Policy Optimization is then adopted, whose on-policy formulation, trust-region clipping, and fixed entropy coefficient remove each failure mode by design at the cost of more environment interactions. The result is a validated training infrastructure and a catalogue of failure modes with recognizable training-log signatures.
